Reusable PPS RFID Laundry Tag (1-Hole)
- Highly Customizable: Customize style, printing, features, and RFID chip.
- Flexible Mounting: Single-hole design supports pinning, hanging, or fast adhesive mounting.
- Optional Anti-Metal & Adhesive: Add an anti-metal layer for metal assets, or adhesive backing for instant peel-and-stick use.
- PPS Durability: IP68 waterproof and resistant to 220°C heat, 60 bars of pressure, and industrial chemicals.
- Dual-Frequency RFID: Choose UHF for fast bulk scans or NFC for smartphone touch.
The Reusable Single-Hole PPS RFID Laundry Tag is built as a configurable platform, it adapts to diverse applications—from temporary garment tracking in dry cleaning to permanent asset management in industrial environments. It’s a single, durable solution for a wide range of tracking challenges.
Reusable Single-Hole PPS RFID Tag Features
Built for Your Needs
Begin with the single-hole form factor and build from there. Choose between double-sided PPS construction for maximum toughness or a cost-effective single-sided option. Add anti-metal shielding or an adhesive layer to meet any specialized requirement.
Installation Flexibility
Attach it with professional laundry pins for secure yet reusable garment tracking. Use lanyards for hanging applications. Select adhesive backing for fast peel-and-stick mounting.
Good on Any Surface
With an optional internal anti-metal layer, the tag performs reliably on metal surfaces such as tools, carts, and machinery. Pair adhesive with rivets for a dual-fixation bond—quick to apply, permanent to secure.
Choose Your RFID Chips
Select UHF for long-range, high-speed inventory counts—scanning hundreds of items in seconds. Or select NFC for personalized, tap-and-go interactions with any smartphone. Please ensure the selected RFID frequency (UHF or HF) and protocol match your existing reader system.
Multiple Applications
These tags can be used for reusable laundry & dry cleaning, industrial uniform & garment rental, hard asset tracking (non-metal), metal asset management.
Your Supplier for Customized RFID Solutions
We specialize in delivering RFID tags that match your needs. Whether you need reusable laundry tracking or industrial asset management, we support high-volume bulk orders, competitive wholesale pricing, and complete OEM/ODM services. Contact us to customize the perfect RFID solution for your operation.
Reusable PPS RFID Laundry Tag (1-Hole) Tech Specs:
General & Physical
- Product Name: Reusable PPS RFID Laundry Tag (1-Hole)
- Product Category: RFID Laundry Tags
- SKU: Zeal-RTA06
- Installation Methods: Pin-on, Hanging, Adhesive Mounting

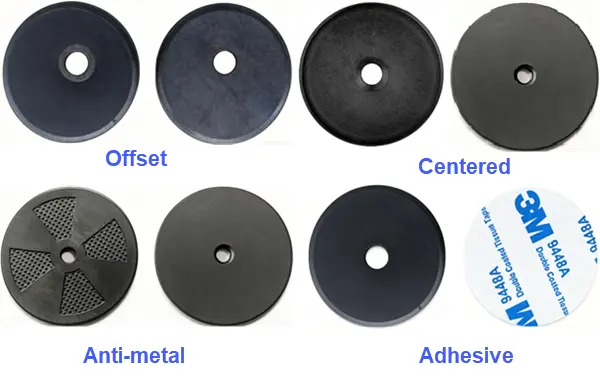

- Hole Position: Centered or Offset (Available upon request)
- Construction & Material:
- Double-Sided PPS (Heavy-Duty)
- Single-Sided PPS + Epoxy/ABS (Cost-Effective)
- Diameter Options: 18mm, 20mm, 22mm, 26mm, 30mm
- Color: Black, White, orange (Custom colors available)
Optional Features
- Adhesive Backing: High-strength, industrial-grade adhesive layer.
- Anti-Metal Layer: Integrated ferrite layer for on-metal functionality.
- Surface Pattern: Custom patterns available for bulk orders.
RFID Performance
- Chip Type: High-Performance UHF or HF Chips Available
- Frequency: UHF: 865–960 MHz | HF:56 MHz
- Protocol: UHF: EPC Class 1 Gen2 | HF: ISO/IEC 14443A (NFC)
- Read Range: UHF: Up to 8 m / 26 ft | HF: Up to 10 cm / 4 in
Durability & Environmental
- Wash Cycles: 200+ Cycles
- Heat Resistance: 220°C
- Protection Rating: IP68 (Waterproof & Dustproof)
- Operating Temperature: -20°C to +85°C
Customize PPS RFID Laundry Tags
1. Form Factor & Primary Application
Choose the form factor best suited for your installation needs.
- Double-Hole (Button): The industry standard for sewing directly onto textiles.
- No-Hole (Inlay): Designed for embedding into assets or pouching within linens.
- Single-Hole (Reusable)):Ideal with laundry pins (dry cleaning) or lanyards (high-value rental garments)
- Crescent-Hole (Tie-on): Uniquely designed for bundling with zip ties.
2. Appearance & Dimensions
Specify the visual characteristics of your tag.
- Diameter: 13mm, 15mm, 20mm, 24mm, 26mm, 30mm, 35mm, 50mm, or custom.
- Color: Black, white or custom.
3. Structural & Technical Options
Configure the tag’s internal structure and core technology.
- Construction Type:
- Double-Sided PPS: Full-shell PPS for maximum 360° protection.
- Single-Sided PPS: A cost-effective option with a PPS base and epoxy-sealed top for standard applications.
- Special Features
- Anti-Metal Layer: Essential for reliable performance when mounting tags directly on metal surfaces.
- Epoxy Coating: Adds a high-gloss, protective layer over logos and codes to prevent abrasion.
- RFID Frequency:
- UHF (865-960 MHz): For long-range (1-8m) bulk reading applications.
- NFC (13.56 MHz): For short-range (0-10cm) interaction with smartphones.
- Chip Selection: Chips from NXP, Impinj, Alien, etc.
4. Marking & Data Services
- Surface Marking: Printing, laser engraving.
- Pre-Encoding Service: We will pre-program your tags with your specific data before shipping, so they arrive ready for immediate deployment.
With so many options, what is this tag’s main purpose?
It can be used as a reusable laundry tag or adapted for industrial applications with anti-metal shielding.
When would I need both the adhesive back and the hole?
The adhesive provides quick positioning, while a rivet or screw through the hole creates a permanent bond that prevents movement or removal.
What is the difference between double-sided and single-sided PPS?
The double-sided PPS provides full protection from all directions, making it suitable for demanding environments. The single-sided PPS version is a cost-effective choice that still delivers reliable durability for standard use cases.
How do I know if I need the anti-metal version?
If you are mounting the tag directly onto any metal surface (steel, aluminum, etc.), you must choose the anti-metal version for the tag to function correctly.
