PPS NFC Laundry Tag (No-Hole)
- Enables instant interaction with any NFC-enabled devices, making item tracking and data access effortless.
- Available with a high-strength adhesive back for easy surface mounting, or without adhesive for embedding and pouching.
- PPS Encapsulation protects through 200+ industrial wash cycles, 220°C heat, and 60 bars of pressure.
- Ideal for smart apparel applications, brand authentication, rental history lookups, or providing garment care information with a simple tap.
- Custom printing, data encoding, NFC chip, and styles are enabled.
PPS NFC Laundry Tag is a durable, no-hole tag that combines PPS strength with tap-and-go NFC, enabling instant smartphone interaction for smarter textile tracking.
PPS NFC Laundry Tag Features
Effortless Smartphone Interaction
Powered by an integrated NFC chip, this tag works with any modern smartphone—no special readers required. Staff and customers can simply tap the tag to check out uniforms, process rental returns, or update status, making every task faster and more intuitive.
Discreet, No-Hole Design
The smooth, no-hole design offers maximum flexibility. Opt for the adhesive-backed version for quick peel-and-stick use on hard surfaces, or choose the standard model for seamless embedding into garment seams or hidden pouches.
Industrial-Grade Durability
Encased in a double-sided PPS shell, the tag is fully waterproof (IP67) and built to endure extreme heat, pressure, and chemicals. It delivers reliable performance through 200+ industrial laundry cycles.
Unlock Smart Apparel Potential
Beyond tracking, this tag creates interactive opportunities. Use it for brand authentication, digital care instructions, rental history access, or marketing engagement—adding new value for both operators and end customers.
PPS NFC Laundry Tag Applications
Individual Item Check-in/Out: Staff can use their phones to tap and instantly link a uniform to an employee, creating an error-proof digital record.
Error-Proof Process Tracking: In dry cleaning or specialized laundry, staff can tap the tag at each station to update its status in real-time.
On-Demand Asset History: Allows staff, managers, or even rental customers to view an item’s full history—such as wash counts, previous users, or maintenance logs—with a simple tap of a phone.
Brand Authentication & Care Info: Provide customers with instant access to product details and care information.
Your Supplier for PPS NFC Laundry Tag
We specialize in NFC laundry tags for modern management systems. Also, we provide competitive wholesale pricing for bulk orders and offer full OEM services to develop the perfect interactive tag for your brand. Contact us to quote for your project.
PPS NFC Laundry Tag (No-Hole) Tech Specs:
General & Physical
- Product Name: PPS NFC Laundry Tag (No-Hole)
- SKU: Zeal-RTA05
- Material: PPS (Durable Double-Sided Construction)
- Installation Method: Adhesive Mounting, Pouching, or Inlaying (Embedding)

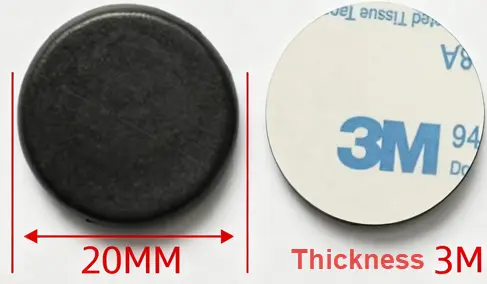

- Diameter Options: 13mm, 15mm, 18mm, 20mm, 24mm, 26mm, 30mm
- Thickness: 2.5mm – 3mm
- Color: Black, White (Custom colors available)
RFID Performance
- Chip Type: High-Performance NFC Chips (e.g., NXP NTAG series)
- Frequency: HF 13.56 MHz
- Protocol: ISO/IEC 14443A / NFC Forum Type 2
- Read Range: Up to 10 cm / 4 in (depends on reader/smartphone)
- Memory: 144 – 888 bytes User Memory (customizable based on chip)
Durability & Environmental
- Wash Cycles: 200+ Cycles
- Heat Resistance: 220°C
- Pressure Resistance: Up to 60 bar
- Protection Rating: IP68 (Waterproof & Dustproof)
- Operating Temperature: -20°C to +85°C
- Data Retention: Up to 10 years
Customize PPS RFID Laundry Tags

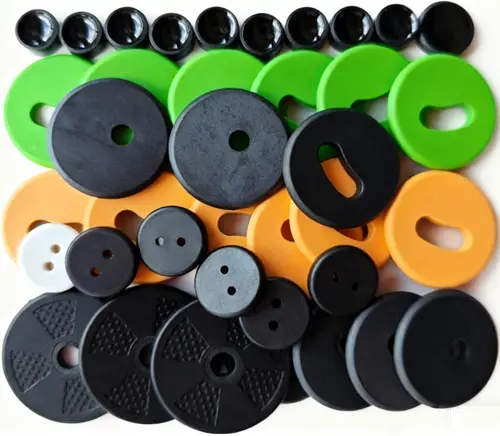

1. Form Factor & Primary Application
Choose the form factor best suited for your installation needs.
- Double-Hole (Button): The industry standard for sewing directly onto textiles.
- No-Hole (Inlay): Designed for embedding into assets or pouching within linens.
- Single-Hole (Reusable)):Ideal with laundry pins (dry cleaning) or lanyards (high-value rental garments)
- Crescent-Hole (Tie-on): Uniquely designed for bundling with zip ties.
2. Appearance & Dimensions
Specify the visual characteristics of your tag.

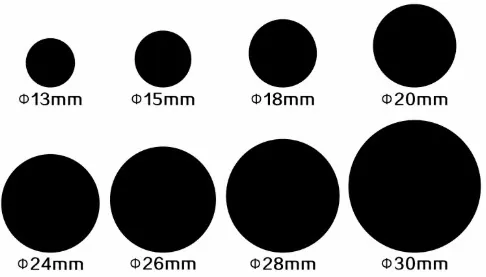

- Diameter: 13mm, 15mm, 20mm, 24mm, 26mm, 30mm, 35mm, 50mm, or custom.
- Color: Black, white or custom.
3. Structural & Technical Options
Configure the tag’s internal structure and core technology.

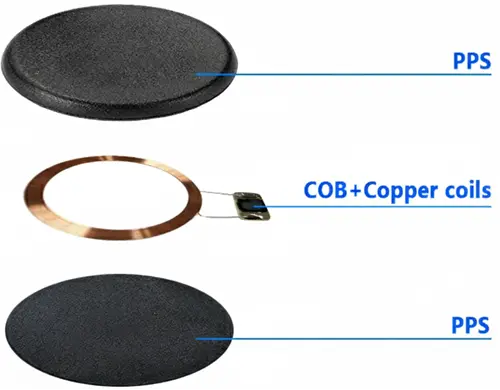

- Construction Type:
- Double-Sided PPS: Full-shell PPS for maximum 360° protection.
- Single-Sided PPS: A cost-effective option with a PPS base and epoxy-sealed top for standard applications.
- Special Features
- Anti-Metal Layer: Essential for reliable performance when mounting tags directly on metal surfaces.
- Epoxy Coating: Adds a high-gloss, protective layer over logos and codes to prevent abrasion.
- RFID Frequency:
- UHF (865-960 MHz): For long-range (1-8m) bulk reading applications.
- NFC (13.56 MHz): For short-range (0-10cm) interaction with smartphones.
- Chip Selection: Chips from NXP, Impinj, Alien, etc.
4. Marking & Data Services

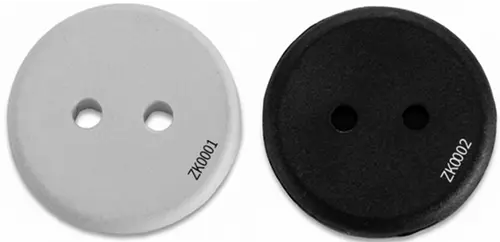

- Surface Marking: Printing, laser engraving.
- Pre-Encoding Service: We will pre-program your tags with your specific data before shipping, so they arrive ready for immediate deployment.
What is the main advantage of an NFC laundry tag over a UHF tag?
UHF is for long-range, bulk scanning (reading hundreds of items at once with a special reader). NFC is for short-range, one-on-one interaction (tapping a single tag with a phone). NFC is perfect for applications where individual data lookup or updates are needed without special hardware.
Will any smartphone be able to read this tag?
Any modern smartphone (most Android phones and iPhones from the last several years) with NFC capabilities will be able to read and interact with the tag.
Is the data on the NFC tag secure?
Yes. Depending on the chip selected, we can implement several security features, including password protection to prevent unauthorized writing and the ability to permanently lock the tag as read-only.
Since it’s an electronic chip, is it truly safe for industrial washing?
The NFC chip is protected by sealed PPS shell as our UHF tags. It is waterproof and engineered to withstand the extreme temperatures, pressures, and chemicals of industrial laundry.
