Customized Durable PCB Anti Metal RFID Tag
- Made with an FR-4 (PCB) substrate for durability and resistance to bending or impact in industrial use.
- Delivers consistent, interference-free reads when mounted directly on metal surfaces.
- Available from 5 mm tags for tools to large-format tags for containers.
- Pre-drilled holes allow installation with screws or rivets.
PCB On-Metal RFID Tags — Built for Industrial Reliability
Our customized PCB On‑Metal UHF RFID Tags are designed to deliver consistent performance under mechanical stress, temperature extremes, and exposure to moisture or chemicals.
Each tag is built on an FR‑4 substrate, the same material used in printed circuit boards. This rigid construction prevents bending or deformation, helping maintain antenna integrity and stable read performance throughout the tag’s lifetime.
Optimized for use on metal surfaces, these tags perform reliably in applications such as IT asset management, warehousing, logistics, tool tracking, and industrial process control.
Customized PCB On-Metal RFID Tags Key Features
- Rigid FR‑4 substrate for resistance to impact, pressure, and bending
- Consistent performance on metal surfaces with stable RF characteristics
- Wide operating temperature range for use in industrial settings
- IP68‑rated for water and dust protection
- Multiple mounting options—industrial adhesive, screws, or rivets
- Available in a range of sizes to suit different asset types
As a specialized PCB anti metal RFID tags supplier and wholesaler, we offer full customization, including chip selection, size and shape, and barcodes, or serial numbers. For more details about customization, please check the customize tab or contact us.
What Makes This Customized Durable PCB Anti Metal RFID Tag Different?
The Customized Durable PCB Anti Metal RFID Tag is the rigid circuit-board option for compact on-metal tracking. Unlike ABS or nylon hard tags that focus on molded housings, this product uses an FR-4 / PCB substrate and is available in circular and rectangular shapes, including very small sizes. It is a strong match for IT assets, warehousing, logistics, tool tracking, returnable assets, containers, and industrial equipment where a compact rigid on-metal RFID tag is needed.
This page also has a clear UHF performance position. It lists EPC Class 1 Gen 2 / ISO/IEC 18000-6C, ETSI and FCC UHF bands, chip options such as Impinj, NXP UCODE, and Alien Higgs, and an on-metal read range up to 8 meters depending on tag size, chip, reader, and environment. Choose this PCB anti-metal RFID tag when the project needs a durable rigid format, custom shape or hole configuration, and stronger UHF inventory performance than a short-range NFC label.
Compare Similar Anti-Metal RFID Tags
- Choose the ABS housing anti metal RFID tag for outdoor metal asset management when a larger sealed housing with multiple industrial mounting methods is preferred.
- Choose the flexible FPC anti-metal RFID tag for embedding and tight spaces when the project needs a thin bendable inlay instead of a rigid PCB tag.
- Choose the printable on-metal UHF RFID label for barcode and QR workflows when RFID printer compatibility and roll label production are required.
- Choose the NFC anti-metal label for phone-based asset records when the workflow is one-by-one smartphone tapping instead of long-range UHF scanning.
Customized Durable PCB Anti Metal RFID Tag Tech Specs:
Physical Specifications
- Material: FR-4 (Printed Circuit Board)

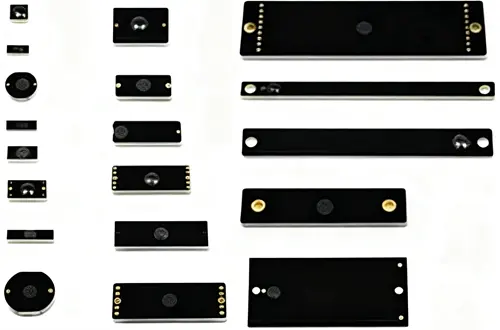

- Available Shapes: Circular, Rectangular
- Available Sizes (mm):
- Circular: Dia 5, Dia 6, Dia 10, Dia 12, Dia 16, Dia 17, Dia 18, Dia 20, Dia 25
- Rectangular: 3×7, 7×1.6, 9×5, 10×3.5, 13×7, 16×4, 22×8, 25×9, 36×13, 40×10, 52×13, 60×25, 70×20, 80×20, 95×25, and many more.
- Waterproof Rating: IP68
Technical Parameters
- Operating Frequency: 865-868 MHz (ETSI) / 902-928 MHz (FCC)
- Communication Protocol: EPC Class 1 Gen 2 (ISO/IEC 18000-6C)
- Read Range (On-Metal): Up to 8 meters (Dependent on tag size, chip, reader, and environment).
Chip Characteristics
- Common Chip Types: Impinj Monza Series (M4QT, R6-P, M750), NXP UCODE Series (U8), Alien Higgs Series (H9)
- EPC Memory: 96 – 128 bits
- User Memory: Up to 512 bits (Chip dependent)
Environmental & Packaging
- Operating Temperature: -40°C to +100°C (-40°F to +212°F)
- Storage Temperature: -40°C to +150°C (-40°F to +302°F)
- Packing Format: Shipped in anti-static bags.
- Quantity: Varies by tag size.
Customize Your PCB RFID Anti-Metal Tags
Our PCB On-Metal tags are built on a rigid FR-4 substrate. We offer an extensive range of sizes, chip options, and mounting configurations to ensure a perfect fit for your application.
1. RFID Chip & Performance
Select from a wide portfolio of high-performance chips to meet your specific needs for read range, memory, and functionality.
- UHF Chip Options (860-960 MHz):
- NXP UCODE Series (e.g., U8)
- Impinj Monza Series (e.g., M4QT, R6-P, M750)
- Alien Higgs Series (e.g., H9)
- HF Chip Options (13.56 MHz): ISO 15693 compliant chips like NXP ICODE® SLI-X.
2. Physical Specifications & Available Sizes
- Circular Tags: Ideal for compact applications, available in a variety of diameters (mm):
- Micro: Dia 5, Dia 6
- Small to Medium: Dia 10, Dia 12, Dia 16, Dia 17, Dia 18, Dia 20, Dia 25
- Rectangular Tags: Sizes (mm) ranging from miniature to large-format:
- Micro / Miniature: 3×7, 6, 9×5, 10×3.5, 16×4
- Small: 10×5, 12×7, 13×7, 18×8, 20×6, 22×8, 23×9
- Medium: 25×9, 25×10, 28×8, 30×5, 33×10, 36×11, 36×13, 40×10
- Large: 50×10, 52×13, 60×25, 60×30, 70×20, 70×30, 80×20, 95×25
- Color Options: Black,White.
3. Personalization & Branding
Add visual identification to your PCB tags for easy asset recognition.
- Laser Engraving: We can laser engrave serial numbers, UID, QR codes, or simple logos directly onto the PCB surface.
- Screen Printing on Overlay: For logos or text requiring color, we can apply a protective overlay to the tag, which can then be screen printed.
4. Mounting Methods & Hole Configuration
Choose the attachment method and hole pattern best suited for your asset and environment.
- Adhesive Backing: Most tags can be supplied with an optional pre-applied industrial-grade adhesive for simple peel-and-stick application.
- Mounting Holes: A key feature for permanent and secure installation.
- Hole-Free Designs: Perfect for embedding or adhesive-only applications.
- Two-Hole Configuration: A common option for rectangular tags, providing secure mounting with screws or rivets. Hole diameters range from 5mm to 3.5mm.
- Single-Hole Configuration: Available on select circular and rectangular models.
5. Data Services
- Chip Programming: Custom EPC/User Memory pre-programming with your IDs/asset data.
- Data Locking: Optional password or permanent lock to prevent tampering.
- UHF Chip Options (860-960 MHz):
Why choose a PCB tag over a flexible label?
PCB tags offer superior durability and rigidity. Their FR‑4 construction resists impact, bending, and pressure, protecting the antenna and ensuring consistent performance. Ideal for long-term use on industrial equipment, tools, and returnable assets.
What is FR‑4 material?
FR‑4 is a glass‑reinforced epoxy laminate used in printed circuit boards. It provides strength, low weight, and excellent resistance to heat, chemicals, and moisture.
Can these tags withstand harsh environments?
Yes. Rated IP68 and built for wide temperature ranges, they perform reliably in manufacturing facilities, outdoor operations, and logistics sites.
How are PCB anti metal RFID tags mounted?
They support multiple mounting methods. Use strong industrial adhesive for quick application, or screws and rivets via pre‑drilled holes for permanent installations.
What type of RFID reader is required?
Any UHF reader compliant with EPC Class 1 Gen 2 (ISO 18000‑6C) will work. Most fixed and handheld models support this standard.
Do you offer free samples?
Samples are not free. But sample fees can be deducted from the cost of the first order.
When should I choose a customized durable PCB anti metal RFID tag?
Choose this tag when the project needs a rigid PCB-based on-metal RFID tag with custom shape, size, hole configuration, and chip options. It is suited to compact equipment, IT assets, tools, containers, returnable assets, and industrial process control.
What read range does this PCB anti-metal RFID tag support?
The page states an on-metal read range up to 8 meters, depending on tag size, chip, reader, and environment. Do not treat this as a guaranteed range for every size or installation.
How is this different from a printable on-metal UHF label?
The PCB tag is a rigid FR-4 / PCB substrate designed for durable on-metal tracking. The printable on-metal UHF label is better for roll printing, barcode/QR workflows, and adhesive label application.
Can this PCB tag be customized?
Yes. The page lists customization options including chip choice, size, shape, barcode, serial number, laser engraving, QR code, simple logo, screen printing, chip programming, and data locking.
