ABS Housing Anti Metal RFID Tag
- ABS housing protects the RFID chip from water, chemicals, and physical damage.
- Designed with an anti‑metal structure to maintain stable signal performance on metal surfaces.
- Supports installation with adhesive, screws, rivets, or cable ties.
- Works with multiple frequencies and chip types, including NTAG®, ICODE®, and Impinj®.
These Industrial ABS anti metal tags are designed to meet those challenges head‑on, delivering reliable performance in metal surface environments.

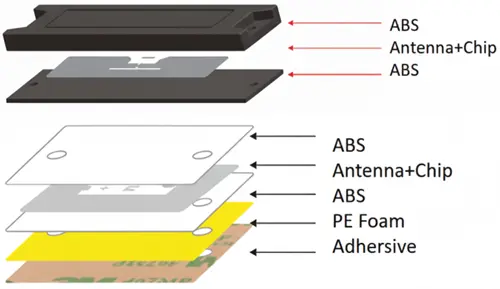

Each tag features a durable ABS (Acrylonitrile Butadiene Styrene) housing that protects the antenna and chip from water, chemicals, and physical impact. The integrated anti‑metal structure, combining ABS layers and PE foam, isolates the antenna from metal surfaces to eliminate signal interference and provide consistent read performance.
These ABS tags are suitable for applications from industrial tools and gas cylinders to IT assets and logistics tracking, and enable accurate and efficient asset management indoors or outdoors.
Key Features
- IP68 Waterproof & Rugged: Fully sealed ABS housing resists water, acid, alkali, and impact for long‑term use.
- Stable On‑Metal Reading: Anti‑metal structure ensures consistent read performance on metallic surfaces.
- Multi‑Frequency Capability: Compatible with UHF, HF (NFC), and LF chips to match various systems.
- Versatile Mounting: Supports adhesive, screw, rivet, or cable‑tie installation for secure attachment.
- Flexible Options: Available in multiple sizes and materials, including standard ABS, ABS+PE Foam, and ABS+PC blends.
As a dedicated RFID tags supplier, we provide full customization options from chip selection and form factor to laser‑engraved logos, barcodes, and serial numbers for RFID ABS anti metal tags. To view the detailed customization option, please click the customize tab. Or contact us to discuss design options and wholesale pricing.
ABS Housing Anti Metal RFID Tag Tech Specs:
Physical Specifications
- Housing Material: Standard ABS, ABS+PE Foam, or ABS+PC
- Available Sizes (mm): 70x25x6.5, 80x30x10, 85x20x11, 95x25x5, 105x30x17.5, 130x21x12.5 (and more available)
- Available Colors: Black, White, Gray (Custom colors available)
- Waterproof Rating: IP68 (implied from)
Technical Parameters
- Operating Frequency: UHF (860-960 MHz), HF (13.56 MHz), or LF (125KHz)
- Communication Protocol:
- UHF: EPC Class 1 Gen 2 (ISO/IEC 18000-6C)
- HF: ISO 14443A, ISO 15693, ISO 18092
- Read Range: Varies based on chip, frequency, tag size, and reader.
Chip Options (Full Customization Available)
- UHF: Alien Higgs, Impinj Monza (R6, M730, M750), NXP UCODE, etc.
- HF (NFC): NXP NTAG® (213, 215, 216), NXP ICODE® SLIX, MIFARE Classic®, etc.
- LF: EM4200, TK4001, T5577, etc.
Environmental & Operational Specifications
- Operating Temperature: -30°C to +85°C (Standard industrial range)
- Chemical Resistance: Resistant to water, acid, and alkali.
Mounting Options
Standard: High-Strength Adhesive, Screw/Rivet Holes, Cable Tie (Binding) Slots
Customize ABS RFID Anti-Metal Tags
We offer a wide range of customization options for ABS anti-metal RFID tags to ensure your tags are perfectly aligned with your asset management, industrial, or logistics requirements.
1. RFID Chip & Performance
The core of your tag. Select the chip that matches your system’s performance and memory needs.
- UHF Chip Options (860-960 MHz): Series from Impinj (Monza R6/R6-P, M700 series), NXP (UCODE series), and Alien (Higgs series).
- HF/NFC Chip Options (13.56 MHz):Chips include NXP NTAG®, ICODE®, and MIFARE® series.
2. Physical Customization
Tailor the physical form of the tag to fit your assets and operational environment.
- Available Sizes (mm): 70 x 25 x 6.5, 80 x 30 x 10, 85 x 20 x 11, 95 x 25 x 5, 135 x 21 x 12.5, etc.
- Housing Color: Black, White, and Gray. Or customize color for large volume orders.
- Material Compound:
- Standard ABS: Offers a high-performance, cost-effective solution for most applications.
- ABS+PC Blend: Provides enhanced impact and heat resistance for more demanding environments.
- ABS+PE Foam: Incorporates a foam layer for better cushioning and adhesion on uneven surfaces.
3. Personalization & Branding
Make your tags uniquely yours with visual identification and machine-readable codes.
- Screen Printing: Barcodes, serial number, and logos
4. Mounting Methods
Choose the most secure and convenient attachment method for your assets.
- Adhesive Backing: industrial-grade adhesive; 3M® VHB™ tape optional for extra strength.
- Screw / Rivet Mounting: Mounting holes for using screws or rivets.
- Binding: Cable-tie-ready design grips pipes, cages, machinery.
5. Data Services
We can pre-program the EPC and/or User Memory banks of the chip with your specific data, such as an ID number or asset information.
How do these tags work on metal when others fail?
They feature a special internal structure that isolates the RFID antenna from the metal surface, preventing signal interference and ensuring stable, reliable reads.
How durable are the ABS tags?
The rigid ABS housing protects the chip from impacts, water, chemicals, acid, and alkali. It is ideal for long‑term use in harsh industrial or outdoor conditions.
What is the best way to mount these tags?
Use the built‑in adhesive for quick flat‑surface installation, or secure them permanently with screws, rivets, or cable ties using the pre‑drilled holes.
What’s the difference between ABS, ABS+PE Foam, and ABS+PC materials?
- ABS: Strong, economical protection for general environments.
- ABS+PE Foam: Adds a foam layer for better contact on uneven surfaces.
- ABS+PC: Polycarbonate blend offering the highest impact and heat resistance.
Can these tags track gas cylinders?
Yes. They are well‑suited for gas cylinders and other metal assets that need durable lifecycle tracking.
