MIFARE Classic 1K Smart Card
- Compliant with ISO/IEC 14443 Type A standard
- Operates at 13.56 MHz frequency
- 1 KB EEPROM memory organized in 16 sectors
- Supports mutual three-pass authentication
- Durable Smart Card Mifare 1K with customizable printing options
- Ideal for access control, transportation, and loyalty applications
MIFARE Classic 1K cards are widely used contactless smart cards that offer a balance of security, cost-effectiveness, and versatility. These cards are based on the ISO/IEC 14443 Type A standard and are compatible with a variety of NFC-enabled devices. While smart cards MIFARE 1K are a popular choice for many applications, it may not be suitable for applications requiring the highest levels of security. For such cases, MIFARE DESFire may be recommended.
- Memory Structure: 1,024 bytes divided into 16 sectors, each containing 4 blocks of 16 bytes
- Unique Identifier: Each card has a unique 4-byte or 7-byte UID
- Security: Two keys (A and B) per sector with configurable access conditions
- Data Retention: Up to 10 years
- Write Endurance: Up to 100,000 cycles
- Compatibility: Works with most NFC-enabled devices and readers
Physical Characteristics
- SKU: Zeal-1013

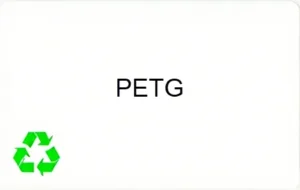

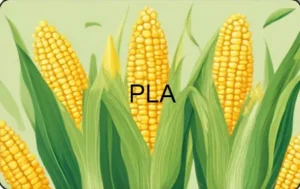

- Material: PVC, PET, ABS, PET-G, more
- Dimensions: 85.5 x 54 mm (CR80 standard)
- Thickness: 0.86 ± 0.04 mm
- Surface Finish: Glossy, matte, or frosted
- Printing Options: Offset, silk-screen, UV printing, laser engraving
RFID Core Technology
- Chip: NXP MIFARE Classic® 1K
- Protocol: ISO/IEC 14443 Type A
- Frequency: 13.56 MHz
- Data Transfer Rate: 106 kbit/s
- Operating Distance: Up to 100 mm (depending on reader and antenna geometry)
Performance & Security
- Authentication: Mutual three-pass authentication (ISO/IEC DIS 9798-2)
- Encryption: CRYPTO1 algorithm
- Anti-collision: Supports multiple cards in the field
- Data Integrity: 16-bit CRC, parity bits, bit coding, and bit counting
Environmental & Durability
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -20°C to +65°C
- Durability: Waterproof and wear-resistant
Packaging & Order Info
- Minimum Order Quantity: 500 pcs
- Standard Packing: 200 pcs per inner box; 2,000 pcs per carton
- Lead Time: 3–7 days for samples; 7–20 days for bulk orders
Please Note: Customization options may vary slightly depending on the card material. If you can’t find what you want from the following option, feel free to contact us and let us know your needs. We’ll get back to you ASAP after confirming with our engineers. And we will do our utmost to customize the card you desire.
Printing Method
Here are 3 professional printing techniques to bring your designs to life.- Silkscreen Printing: ideal for printing logos and icons. The colors are pure and it is suitable for projects that require bright colors, large areas of solid color, and high-contrast patterns.
- UV Printing: Bright colors, scratch-resistant, suitable for complex patterns and multi-color printing.
- Offset Printing：High color reproduction accuracy, suitable for complex multi-color designs.

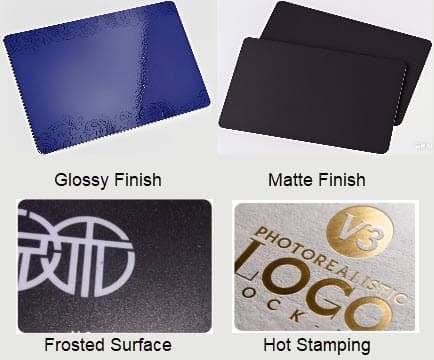

Surface Finishes
We provide the following surface finishes to cater to different branding styles.
- Glossy Finish: Surface is smooth and shiny, with rich and bright colors.
- Matte Finish: Soft and non-reflective, with a premium touch.
- Frosted Surface: Similar to frosted glass, it is anti-slip and anti-fingerprint.
- Spot UV: Glossy coating on selected areas for emphasis and visual contrast.
- Hot Stamping (Gold/Silver): Shiny metallic effect, enhancing card’s texture and brand equity.

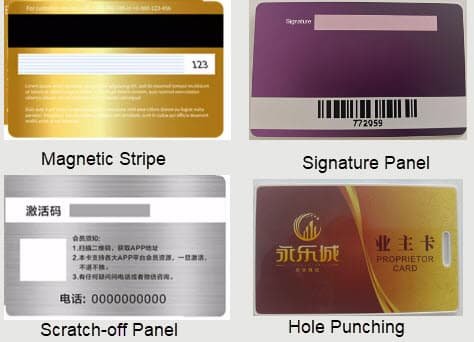

Functional Add-ons
Improve usability with functional features to match your application needs.
- Magnetic Stripe: Commonly used for access control, membership, or payment systems.
- Signature Panel: Ideal for cards requiring a signature space, such as staff or banking cards.
- Scratch-off Panel: Covers PINs or promotional codes for privacy and marketing.
- Hole Punch: Allows easy attachment to lanyards or clips, useful for ID badges.

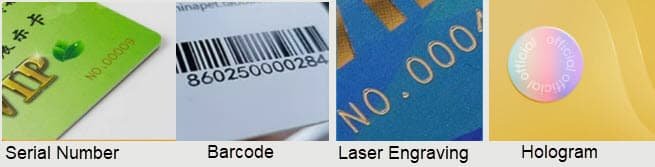

Security & Personalization
Enhance brand exclusivity and anti-counterfeiting features for premium applications.
- Variable QR Code / Barcode: Custom unique codes for access, tracking, marketing, loyalty programs, etc.
- Serial / Embossed Numbers: Unique serial number per card, variable data.
- Laser Engraving Number: Non-erasable, enhance anti-counterfeiting level.
- Hologram: Enhance brand trust and provide strong anti-counterfeiting protection.
Custom Size
Besides standard CR80 cards (85.5×54mm), we also allow you to customize the shapes, thickness (0.2 – 0.8mm), and dimensions according to project needs.Custom RFID Chip
Choose the RFID chips by protocol, capacity, and functionality. We have chip with LF (125KHz), HF (13.56MHz), and UHF (860–960MHz) frequencies. Other chips are also available upon request.
Chip Type Protocol Capacity Anti-collision Function Frequency TK4100 / No No Read Only 125KHz EM4200 / No No Read Only 125KHz EM4305 / 512 bit No Read/Write 125KHz T5577 / 330 bits No Read/Write 125KHz NTAG® 213 ISO14443A 180 byte No Read/Write 13.56MHz NTAG® 215 ISO14443A 540 byte No Read/Write 13.56MHz NTAG® 216 ISO14443A 924 byte No Read/Write 13.56MHz MIFARE® Classic® 1K ISO14443A 1 KB No Read/Write 13.56MHz MIFARE® Classic® 4K ISO14443A 4 KB No Read/Write 13.56MHz MIFARE® Plus® S 1K ISO14443A 2 KB / 4 KB No Read/Write 13.56MHz MIFARE Ultralight® EV1 ISO14443A 48 byte No Read/Write 13.56MHz MIFARE Ultralight® C ISO14443A 144 byte No Read/Write 13.56MHz ICODE® SLIX ISO15693 896 bit Yes Read/Write 13.56MHz Alien H3 ISO18000-6C 512 bit Yes Read/Write 860–960MHz
Basic Information & Specifications for MiFare 1K
What is a MIFARE Classic 1K card?
A MIFARE Classic 1K card is a contactless smart card with 1KB of memory, divided into 16 sectors. It operates at 13.56 MHz and complies with the ISO/IEC 14443 Type A standard, making it widely used in access control and public transport systems.
What is the memory structure?
The MIFARE Classic 1K card has 1024 bytes total, divided into 16 sectors (each with 4 blocks of 16 bytes). The last block of each sector stores access keys and conditions.
What is the UID?
A MIFARE 1K card has a 4-byte unique identifier (UID) that is fixed during manufacturing. Some “UID writable” cards allow modification, but standard MIFARE Classic 1K cards have immutable UIDs.
Security & Encryption
What is the read range of Mifare 1K?
The read range is up to 10 cm, depending on the reader and environment. This makes it suitable for applications requiring close proximity.
How secure is it?
The MIFARE Classic 1K card uses CRYPTO1 encryption, but it has known vulnerabilities and can be compromised. It is suitable for low-security applications.
Are there security vulnerabilities?
Yes, the CRYPTO1 algorithm is broken, allowing unauthorized access through various attacks. For higher security, consider MIFARE DESFire or MIFARE Plus.
Read/Write, Programming & Cloning
How are MIFARE Classic 1K cards read and written?
Reading and writing require a 13.56 MHz RFID reader/writer. Authentication is needed to access data, with each sector protected by independent keys.
What are Key A and Key B?
Key A and Key B are 6-byte passwords stored in each sector trailer for data protection. Different keys can be set for each sector.
Can MIFARE Classic 1K cards be cloned?
Yes, due to vulnerabilities, they can be cloned using specialized tools. This is a concern for applications requiring high security.
Can the UID be modified?
Standard MIFARE Classic 1K cards have fixed UIDs, but “UID writable” cards allow modification. This feature is useful for certain applications but can introduce security risks.
What are common applications?
MIFARE Classic 1K cards are used in public transport, access control, employee IDs, time attendance, event tickets, and loyalty programs.
What devices are compatible?
Compatible with 13.56 MHz readers and many NFC-enabled Android phones. Limited support on iOS devices.
How do MIFARE Classic 1K cards differ from MIFARE DESFire or MIFARE Plus?
MIFARE DESFire offers higher security (AES encryption) and faster processing. MIFARE Plus is a backward-compatible upgrade with selectable security levels.
