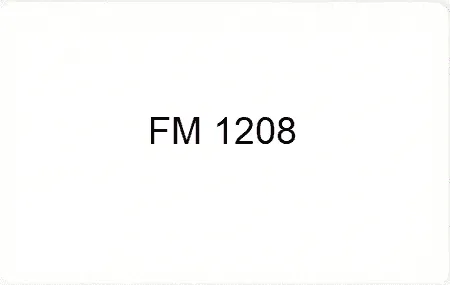

Fudan FM1208 RFID Card
- High-performance RFID chip (Fudan FM1208 solution)
- Enhanced security with 3DES/AES encryption (more secure than Mifare Classic)
- contact (ISO 7816) and contactless (ISO 14443A) standard
- works with most 13.56MHz readers
- Industrial durability (IP54 rated)
The Fudan FM1208 RFID Card is a high-security contactless smart card solution, designed for access control, payment systems, and identification applications. Unlike traditional Mifare Classic 1K cards, the FM1208 offers stronger encryption (3DES/AES) while maintaining broad compatibility with standard 13.56MHz RFID readers. If you need Mifare Classic 1K compatibility, please consider our FM1108-based cards
MIFARE DESFire Compatibility: Highly compatible with MIFARE DESFire® EV1, which significantly simplifies system migration and new application development cycles.
Cost-effective solutions: Delivers performance and security comparable to high-end CPU cards like MIFARE DESFire®, at a more competitive price point, making it ideal for large-scale projects.
Secure and Rewritable Memory: EEPROM memory supports 100,000+ write cycles with 10+ years of secure data storage.
Multiple Customization Options: Offset printing, QR/barcodes, magnetic stripes, and UID laser engraving available.
Reliable Supply for Large Orders: Fast production, consistent quality, and bulk sourcing supported.
Physical Parameters
- SKU: Zeal-1021
- Material: PVC / PET / PETG or more
- Size: 85.5 × 54 mm
- Thickness: 0.84 mm
- Surface: Glossy / Matte / Custom
- Printing Options: Offset, laser, barcode, magnetic stripe
RFID Specifications
- Chip: Fudan FM1208
- Compatibility: MIFARE DESFire®
- Type: Contactless card
- Protocol: ISO/IEC 7816
- Memory: 8K EEPROM
- Endurance: 100,000+ read/write cycles
- Data Retention: 10+ years
Environment, Performance & Durability
- Operating Temp: -20°C to +70°C
- Storage Temp: -40°C to +85°C
- Water Resistance: Partial
- Chemical/Scratch Resistance: Optional
- Security: Multi-level password & anti-cloning
- Anti-counterfeit: Supported
- Data Lock / UID Options: Customizable
Packaging & Order Info
- MOQ: 500 pcs
- Lead Time: 7–20 working days
- Packaging: 200 pcs/box or customized
- OEM/ODM: Supported
- Applications: ID, access control, loyalty, prepaid
Please Note: Customization options may vary slightly depending on the card material. If you can’t find what you want from the following option, feel free to contact us and let us know your needs. We’ll get back to you ASAP after confirming with our engineers. And we will do our utmost to customize the card you desire.
Printing Method
Here are 3 professional printing techniques to bring your designs to life.- Silkscreen Printing: ideal for printing logos and icons. The colors are pure and it is suitable for projects that require bright colors, large areas of solid color, and high-contrast patterns.
- UV Printing: Bright colors, scratch-resistant, suitable for complex patterns and multi-color printing.
- Offset Printing：High color reproduction accuracy, suitable for complex multi-color designs.
Surface Finishes
We provide the following surface finishes to cater to different branding styles.
- Glossy Finish: Surface is smooth and shiny, with rich and bright colors.
- Matte Finish: Soft and non-reflective, with a premium touch.
- Frosted Surface: Similar to frosted glass, it is anti-slip and anti-fingerprint.
- Spot UV: Glossy coating on selected areas for emphasis and visual contrast.
- Hot Stamping (Gold/Silver): Shiny metallic effect, enhancing card’s texture and brand equity.
Functional Add-ons
Improve usability with functional features to match your application needs.
- Magnetic Stripe: Commonly used for access control, membership, or payment systems.
- Signature Panel: Ideal for cards requiring a signature space, such as staff or banking cards.
- Scratch-off Panel: Covers PINs or promotional codes for privacy and marketing.
- Hole Punch: Allows easy attachment to lanyards or clips, useful for ID badges.
Security & Personalization
Enhance brand exclusivity and anti-counterfeiting features for premium applications.
- Variable QR Code / Barcode: Custom unique codes for access, tracking, marketing, loyalty programs, etc.
- Serial / Embossed Numbers: Unique serial number per card, variable data.
- Laser Engraving Number: Non-erasable, enhance anti-counterfeiting level.
- Hologram: Enhance brand trust and provide strong anti-counterfeiting protection.
Custom Size
Besides standard CR80 cards (85.5×54mm), we also allow you to customize the shapes, thickness (0.2 – 0.8mm), and dimensions according to project needs.Custom RFID Chip
Choose the RFID chips by protocol, capacity, and functionality. We have chip with LF (125KHz), HF (13.56MHz), and UHF (860–960MHz) frequencies. Other chips are also available upon request.
Chip Type Protocol Capacity Anti-collision Function Frequency TK4100 / No No Read Only 125KHz EM4200 / No No Read Only 125KHz EM4305 / 512 bit No Read/Write 125KHz T5577 / 330 bits No Read/Write 125KHz NTAG® 213 ISO14443A 180 byte No Read/Write 13.56MHz NTAG® 215 ISO14443A 540 byte No Read/Write 13.56MHz NTAG® 216 ISO14443A 924 byte No Read/Write 13.56MHz MIFARE® Classic® 1K ISO14443A 1 KB No Read/Write 13.56MHz MIFARE® Classic® 4K ISO14443A 4 KB No Read/Write 13.56MHz MIFARE® Plus® S 1K ISO14443A 2 KB / 4 KB No Read/Write 13.56MHz MIFARE Ultralight® EV1 ISO14443A 48 byte No Read/Write 13.56MHz MIFARE Ultralight® C ISO14443A 144 byte No Read/Write 13.56MHz ICODE® SLIX ISO15693 896 bit Yes Read/Write 13.56MHz Alien H3 ISO18000-6C 512 bit Yes Read/Write 860–960MHz
Core Technology & Positioning
Q: What exactly is a Fudan FM1208 RFID card?
A: The Fudan FM1208 is a high-performance, dual-interface CPU card supporting both contact (ISO/IEC 7816) and contactless (ISO/IEC 14443 Type A) communication. It’s a cost-effective alternative to mainstream CPU cards like the MIFARE DESFire® series, offering advanced security and data management.
Q: What are the primary applications for Fudan FM1208 cards?
A: Ideal for multi-application scenarios requiring robust performance, such as city-wide transit cards, social security cards, campus ID cards, high-security access control, and small electronic wallets.
Q: How much memory does the FM1208 chip have?
A: It features a 8K-byte EEPROM. This large memory capacity, combined with a secure file system, allows it to support multiple independent applications on a single card without interference.
Compatibility & Comparison
Q: Are FM1208 cards compatible with standard RFID readers?
A: Yes. The contactless interface complies with the ISO/IEC 14443 Type A standard, making it compatible with most 13.56MHz readers used in payment, transit, and access control systems. The contact interface complies with ISO/IEC 7816 for use with contact chip readers.
Q: How compatible is the FM1208 with MIFARE DESFire® systems?
A: The Fudan FM1208’s instruction set is designed to be highly compatible with the MIFARE DESFire® EV1 command set. This allows for a relatively straightforward and low-cost migration for systems already developed for DESFire.
Security & Durability
Q: How secure are Fudan FM1208 cards for sensitive applications?
A: FM1208 cards are designed for high-security applications. They feature a hardware DES/3DES coprocessor for fast cryptographic operations and a secure file system with firewalls to protect different applications from each other. They often carry national security certifications, such as ITSEC EAL4+, making them suitable for financial, transit, and e-government use.
Q: How do FM1208 cards protect against cloning?
A: The FM1208 uses advanced mutual authentication protocols and hardware encryption keys, making it significantly more difficult to clone than simple memory cards. While no chip is 100% immune to sophisticated attacks, we ensure our cards use secure configurations and key diversification to mitigate risks.
Q: Are the cards durable enough for daily use?
A: Yes. Our FM1208 cards are typically made from high-quality PVC or recycled rPVC (rPVC), providing excellent resistance to bending, scratches, and daily wear. They operate reliably between -20°C and +60°C and are water-resistant, making them suitable for everyday use as transit passes or access cards.
