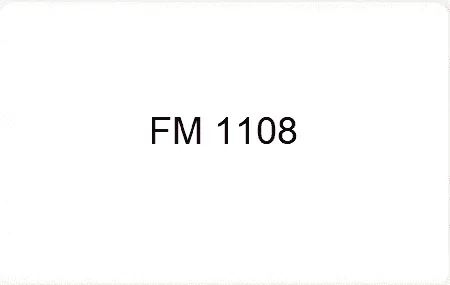

Fudan FM1108 RFID Card
- MIFARE Classic®1K Compatible: Seamlessly integrates with MIFARE systems.
- Cost-Effective Solution: Ideal for large-scale projects on a budget.
- Versatile Applications: Fit for access control, transit, and membership.
- 1KB Memory: Sufficient storage for diverse applications.
- Customizable: Ready for branding with full-color printing.
The Fudan FM1108 RFID Card offers a reliable contactless solution that’s fully compatible with existing Mifare Classic 1K infrastructure. It provides seamless integration with legacy systems while featuring advanced encryption technology. As a trusted supplier, we delivers competitive pricing for large quantity orders with full customization services including card printing, UID programming, and magnetic stripe encoding. It is ideal for system integrators and resellers needing Mifare-compatible solutions.
As a leading supplier of smart card solutions, we provide high-quality Fudan FM1108 RFID cards perfect for wholesale and bulk orders.
Full MIFARE Classic® 1K Compatibility
Designed to be an alternative to the NXP MIFARE Classic® 1K. It utilizes the same memory structure, security protocols, and command set, allowing for easy integration into systems already designed for MIFARE Classic®.
1K-Byte Memory with Sector-Based Structure
The card contains 1024 bytes of EEPROM memory, organized into 16 secure sectors. Each sector is protected by two distinct keys (Key A and Key B), allowing for complex access conditions and multi-application data storage.
High-Quality Custom Printing
It is optimized for high-definition printing, including full-color offset, silk-screen printing, and personalization with serial numbers, barcodes, or QR codes.
Physical Parameters
- SKU: Zeal-1022
- Material: PVC, PET, rPVC, PETG, or custom
- Dimensions: CR80 (85.5mm x 54mm)
- Thickness: 0.84mm (30mil) or custom
- Surface Finish: Glossy or Matte or custom
RFID Specifications
- Chip: Fudan FM1108
- Frequency: 13.56 MHz
- Protocol: ISO/IEC 14443 Type A
- Memory: 1K-byte (1024 bytes) EEPROM
- Functionality: Read / Write
Performance & Security
- Read Range: Up to 10 cm (depending on reader and environment)
- Security: Proprietary encryption with 2-key authentication per sector
- UID: 4-Byte Unique Identifier
Please Note: Customization options may vary slightly depending on the card material. If you can’t find what you want from the following option, feel free to contact us and let us know your needs. We’ll get back to you ASAP after confirming with our engineers. And we will do our utmost to customize the card you desire.
Printing Method
Here are 3 professional printing techniques to bring your designs to life.- Silkscreen Printing: ideal for printing logos and icons. The colors are pure and it is suitable for projects that require bright colors, large areas of solid color, and high-contrast patterns.
- UV Printing: Bright colors, scratch-resistant, suitable for complex patterns and multi-color printing.
- Offset Printing：High color reproduction accuracy, suitable for complex multi-color designs.
Surface Finishes
We provide the following surface finishes to cater to different branding styles.
- Glossy Finish: Surface is smooth and shiny, with rich and bright colors.
- Matte Finish: Soft and non-reflective, with a premium touch.
- Frosted Surface: Similar to frosted glass, it is anti-slip and anti-fingerprint.
- Spot UV: Glossy coating on selected areas for emphasis and visual contrast.
- Hot Stamping (Gold/Silver): Shiny metallic effect, enhancing card’s texture and brand equity.
Functional Add-ons
Improve usability with functional features to match your application needs.
- Magnetic Stripe: Commonly used for access control, membership, or payment systems.
- Signature Panel: Ideal for cards requiring a signature space, such as staff or banking cards.
- Scratch-off Panel: Covers PINs or promotional codes for privacy and marketing.
- Hole Punch: Allows easy attachment to lanyards or clips, useful for ID badges.
Security & Personalization
Enhance brand exclusivity and anti-counterfeiting features for premium applications.
- Variable QR Code / Barcode: Custom unique codes for access, tracking, marketing, loyalty programs, etc.
- Serial / Embossed Numbers: Unique serial number per card, variable data.
- Laser Engraving Number: Non-erasable, enhance anti-counterfeiting level.
- Hologram: Enhance brand trust and provide strong anti-counterfeiting protection.
Custom Size
Besides standard CR80 cards (85.5×54mm), we also allow you to customize the shapes, thickness (0.2 – 0.8mm), and dimensions according to project needs.Custom RFID Chip
Choose the RFID chips by protocol, capacity, and functionality. We have chip with LF (125KHz), HF (13.56MHz), and UHF (860–960MHz) frequencies. Other chips are also available upon request.
Chip Type Protocol Capacity Anti-collision Function Frequency TK4100 / No No Read Only 125KHz EM4200 / No No Read Only 125KHz EM4305 / 512 bit No Read/Write 125KHz T5577 / 330 bits No Read/Write 125KHz NTAG® 213 ISO14443A 180 byte No Read/Write 13.56MHz NTAG® 215 ISO14443A 540 byte No Read/Write 13.56MHz NTAG® 216 ISO14443A 924 byte No Read/Write 13.56MHz MIFARE® Classic® 1K ISO14443A 1 KB No Read/Write 13.56MHz MIFARE® Classic® 4K ISO14443A 4 KB No Read/Write 13.56MHz MIFARE® Plus® S 1K ISO14443A 2 KB / 4 KB No Read/Write 13.56MHz MIFARE Ultralight® EV1 ISO14443A 48 byte No Read/Write 13.56MHz MIFARE Ultralight® C ISO14443A 144 byte No Read/Write 13.56MHz ICODE® SLIX ISO15693 896 bit Yes Read/Write 13.56MHz Alien H3 ISO18000-6C 512 bit Yes Read/Write 860–960MHz
FM 1108 Card Compatibility & Technology
Q: What is a Fudan FM1108 RFID card?
A: The Fudan FM1108 RFID card is a high-frequency (13.56MHz) smart card that uses the FM1108 chip. It is primarily designed and widely used as a high-performance, cost-effective, and fully compatible alternative to the NXP MIFARE Classic® 1K card.
Q: Is the FM1108 card 100% compatible with MIFARE Classic® 1K?
A: Yes. The FM1108 chip is engineered to be a functional equivalent. It utilizes the same 1K-byte memory structure (16 sectors of 4 blocks), the same command set for reading and writing, and the same security protocols, ensuring it works as a seamless, drop-in replacement.
Q: Will it work with my existing MIFARE Classic® readers and system?
A: Yes. If your current system is designed to work with MIFARE Classic® 1K cards, our FM1108 cards should integrate perfectly without requiring any changes to your existing hardware or infrastructure.
FM1108 Card Applications & Use Cases
Q: What are the best applications for FM1108 cards?
A: Due to their excellent value and wide compatibility, FM1108 cards are ideal for large-scale deployments that require reliable performance but not high-level encryption. Common uses include:
- Access Control Systems (for offices, apartments, parking)
- Membership & Loyalty Cards
- Public Transportation Passes
- Event Ticketing & Passes
- Campus ID Cards
Q: When should I choose an FM1108 card instead of a higher-security card like a CPU card (e.g., DESFire® or FM1208)?
A: You should choose the FM1108 for cost-sensitive systems where the primary need is identification, access, or simple stored value. If your application involves sensitive data, financial transactions, or requires advanced encryption like 3DES or AES, a CPU card like the Fudan FM1208 or NXP MIFARE DESFire® would be the appropriate choice.
Security & Memory Questions
Q: How secure is the FM1108 card?
A: The FM1108 provides a moderate level of security suitable for its intended applications. Each of its 16 memory sectors is protected by two separate, programmable 6-byte keys (Key A and Key B). This password-based system prevents unauthorized reading or writing of data within protected sectors.
Q: Can the UID of a standard FM1108 card be changed?
A: No. Standard FM1108 cards come with a factory-programmed, 4-byte unique ID (UID) that cannot be altered. This ensures each card has a unique serial number for identification.
Q: Can these cards be customized with our company logo?
A: Absolutely. The cards are made from high-quality, printable PVC, serving as a perfect canvas for your brand. We support full-color offset printing, silk-screen printing, and personalization with serial numbers, barcodes, and more.
